UAD-2 Powered Plug-In Tutorial with Jay Sean's "Hit The Lights"
Hey everyone, I'm going to be looking at a mix I did for Cash Money artist Jay Sean called “Hit the Lights,” one of the lead singles off his new upcoming album, Freeze Time. I love Universal Audio’s “Producer's Corner” articles, and wanted to share some of the vocal mixing techniques and ideas I use when approaching a song for an album.
As background, this record was Jay Sean's return to the radio after his mega-hit “Down,” so I wanted to pull out all the stops and really make it work for club and radio. The record was produced by OFM, consisting of Jeremy Skaller and Bobby Bass, the same amazing production duo that whipped up “Down” for Jay Sean a few years back. With all these elements in mind, I set out to maintain a great clean sound on Jay's vocals, while putting in some spicy mix effects to create the ear candy that I love in today's pop records.
I'm mostly going to focus on the vocal settings and approach here, though I can tell you that the rhythm elements of the track would not have been bumping without some help from the UAD-2 QUAD card as well.
So you can check it out for yourself, here's the video for “Hit the Lights” by Jay Sean:
There are several great things about the vocal performance on this song that made this record fun to mix. Jay killed the performance, which is a mixer's dream because all I had to do was clean it up and give it some shine and effects, instead of trying to inject energy into the performance. (Hey UA, that's the next UAD plugin you should make, “Lazy Vocalist Energizer!” I'm pre-ordering it right now.) Also, the arrangement was good; there were great transition vocal parts and good harmonies to create the mix from. With those lucky numbers off my checklist, I was able to focus on just adding space and delay on the track, as well as a bit of clarity and presence to make the record ring out. To accomplish this, there were a few key UAD plugs that made this mix rock. Let's take a look at the sections of this song:
The Hook of “Hit the Lights”
Now, here's the acapella hook performance with the UAD-2 plugs turned on:

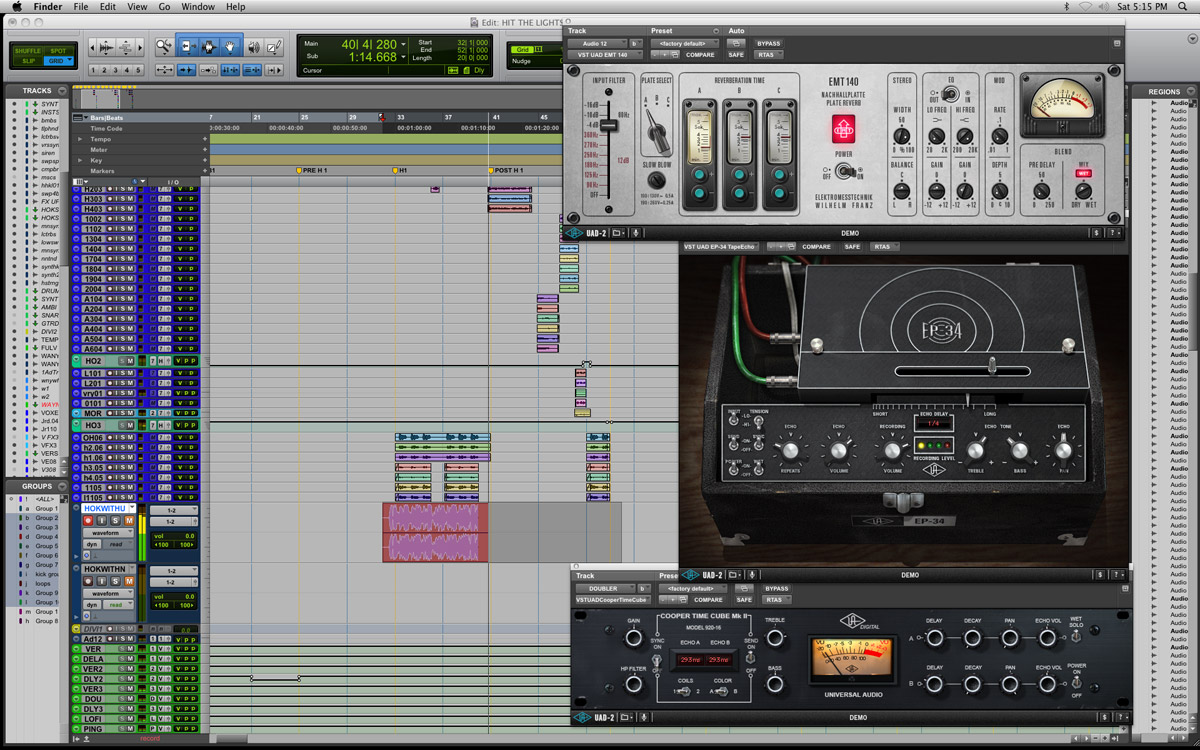

Full disclosure, I still have some UAD EQ and compression treatments on the vocals, but I really wanted to show how the sense of space and echo is lost without these in the mix. The accent on “lights” becomes a driving force for the rhythm and groove, which is huge. The gritty degeneration sound of the EP-34 is great for making a different type of accent instead of a straight ahead clean delay. The stereo width from the Time Cube on certain phrases of the hook really impact the title lyric, which is something I always try to think about during a mix. I think that any special lyrics should have a special effect to really impact the listener. The EMT plate glues it all together, adding a nice tail of space on the phrases and a warmer EQ curve, ducking down some of the very high end. Altogether there is a “wet” feeling of effects, but when it's against the track it doesn't seem excessive, in my opinion.
Verse 1 of “Hit the Lights:”
Jay Sean Verse Screenshot
With a great vocal performance like Jay Sean’s, I felt like the verse just needed some shining and presence, so I called up some of my favorite EQs and compressors from the UAD line to give it just what it needed to be clear and full of life. The verse is split into eight bar phrases, with background vocals throughout. I opted for a bit of distortion on the first bar to give it a grimy feel right when the beat drops from the intro. That also created an opportunity to come in really clean and strong on the second bar. Using EQ choices from the Trident® A-Range Classic Console EQ Plug-In, the Pultec® Pro EQ Plug-In, and the SSL E Channel Strip Plug-In, I was able to bring out the detail in Jay's vocal and let it tell its own story. I also used the Teletronix® LA-2A Classic Leveling Amplifier Plug-In to give a nice even sound to the verse leads, and to keep the backgrounds from jumping out too much.
Here is the verse without the UAD on:
And here's the verse with the UAD:
After putting the distortion effect on the lead, it thinned out the vocal too much, so I added in a wide "U Curve" with the Pultec plug-in at 100 Hz to give it some nice body. The clean leads, as well as the backgrounds on the second bars had the Trident A-Range with a little high pass engaged, dipping out at 80 Hz and slightly dipping at 1k, and adding a nice shine up at 12k. I really love the sound of the Trident up in that airy 12k-15kHz range. It's very smooth and can be added to make a vocal feel really shiny, but not harsh.
All the leads were summed to an Aux send that added the LA-2A plug-in to even it out, followed by the SSL E Channel Strip to sculpt it further. While I do have a soft expander setting going in the dynamics, I mainly use the filters and EQ curves subtractively on the SSL E Channel. Its fully parametric settings are great at dialing in and cutting out problem frequencies. I'm also a fan of the E Series high-end shelf, and often top off a vocal group with some of that. I will typically have my vocals going to various sub groups (leads, background vocals, hook, bridge), which is helpful for summed signal EQing and compression as well as easier automation and sends control. As you can hear, both versions have the reverbs and delay settings mentioned previously.
Bridge Section of “Hit the Lights:”
Bridge Screenshot
Having set up a good lead EQ and compression sound for the verse, and a nice group of reverbs and delays for the hook, I needed to make the bridge feel special and a bit different before the song takes off one last time for the outro. I wanted to try another verb space, so I shot over to another favorite reverb, the EMT® 250 Classic Electronic Reverberator Plug-In, and added a different echo sound from the Roland® RE-201 Space Echo Tape Delay & Spring Reverb Plug-In, followed by some movement on the pitched down “answer vocal” from the Roland® Dimension D plug-in.
Here’s the bridge vocals without the UAD plugs:
And here’s the bridge Vocals with the UAD plugs turned on:
Both the lead and the pitched-down answer lead have a steady echo behind them. The phrases are pretty spread out, so I could fit in a straight quarter note with a moderate repeat time from the Space Echo.
As you see from the picture, I actually ended up reprinting the Space Echo effect as a separate audio clip. Jay Sean liked it, and it's nice to be able to give the artist separate control of the effect — for when they are performing a new live lead vocal, on television or at live performances. It also allows me to easily send it to the new reverb that I created for this section, a nice longer space from the EMT 250.
The pitched-down answer vocal was a little thin as a mono effect, but a nice touch from the Dimension D fixed that right up. What a great plug-in! Four buttons — and they all sound good. I love the simplicity of it. While the Dimension D is very subtle, it still has a special feel to it.
Well, there you have it. Jay Sean’s "Hit the Lights" was a really fun record to mix, and I incorporated a lot of the vocal approaches I do with many pop mixes, but custom-tailoring some UAD effects to give this one its own sound. Thanks to Jay Sean and the producers for letting me share my approach with you guys. Hope you liked it.
